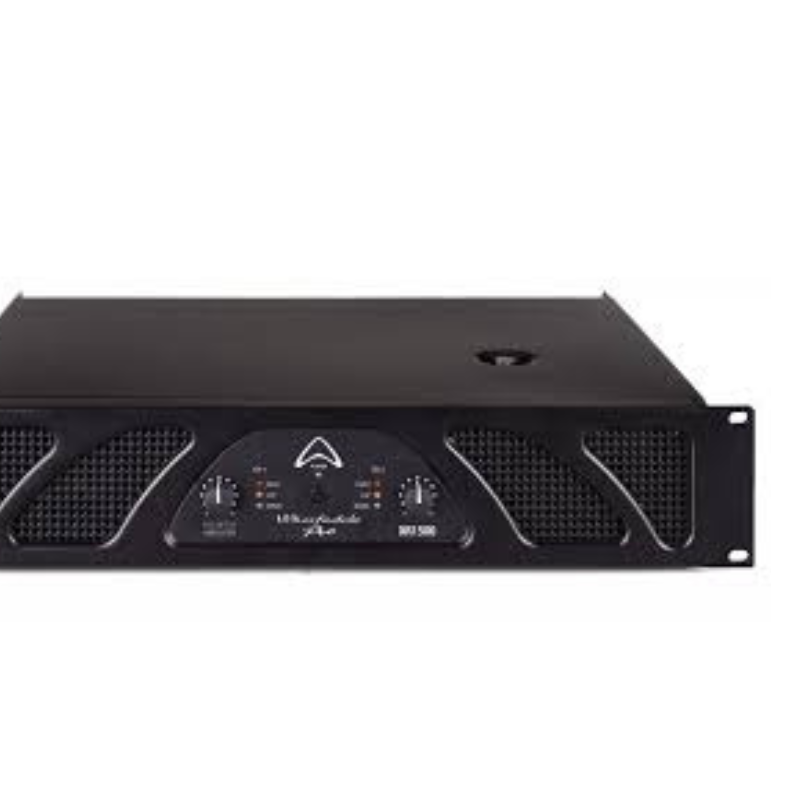

Wharfedale XR1500 Power Amplifier Reliable Class H Professional PA Amplifier

Wharfedale XR1500 Power Amplifier Reliable Class H Professional PA Amplifier

At the core of the Wharfedale XR1500 Power Amplifier is a robust toroidal transformer that ensures stable power delivery even when dealing with fluctuating AC mains conditions. This design improves efficiency and maintains consistent audio performance during live events and continuous operation.

The amplifier delivers 2×230W at 8 ohms and 2×400W at 4 ohms, with a bridged output of up to 1080W. This makes it suitable for powering full-range loudspeakers in small to medium venues, as well as compact subwoofer systems requiring controlled low-frequency output.

The Wharfedale XR1500 Power Amplifier includes comprehensive protection circuitry covering thermal overload, over-current, DC faults, and output short circuits. These protections ensure both the amplifier and connected speakers remain safe during high-demand operation.

For system flexibility, the amplifier supports Stereo, Parallel, and Bridge modes via rear panel switches, along with selectable input sensitivity settings. This allows easy integration with mixers, DSP processors, and other professional audio equipment.

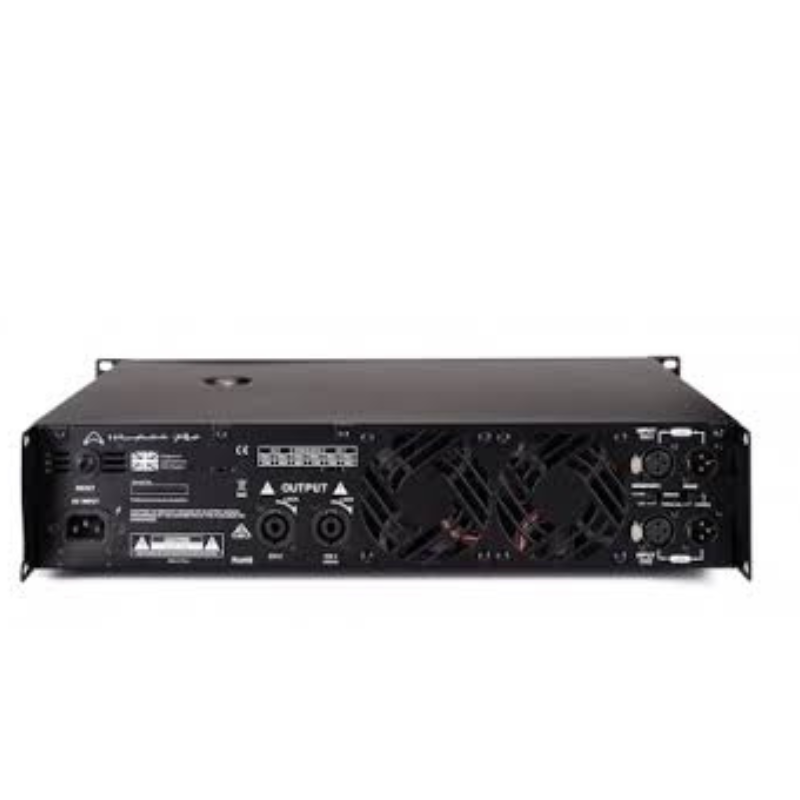

Balanced XLR inputs and XLR thru connections make it easy to daisy-chain multiple amplifiers in larger setups. Ultra-quiet variable-speed cooling fans and a rugged steel chassis with front air vents ensure efficient thermal management and long-term reliability.

Key Features

• Professional 2-channel Class H amplifier
• 2×230W @ 8Ω
• 2×400W @ 4Ω
• 1080W bridged output
• High-efficiency toroidal transformer
• Stereo / Parallel / Bridge mode switching
• Selectable input sensitivity
• Balanced XLR inputs and XLR thru outputs
• Full protection circuitry (thermal, DC, short circuit, over-current)

XR1500 amplifier
